Telescopic slide partial extension 016 | up to 65 kg (143.30 lbs)

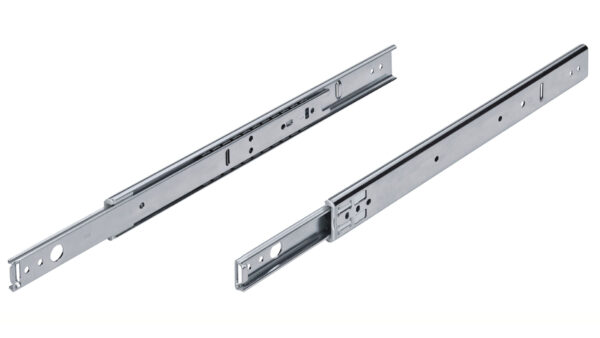

Telescopic slides Schock Metall partial extension series 016

Article price and sale per piece

Article No. Schock 016.06330Z – 016.06339Z

Telescopic slides series 016, hot-dip galvanized steel, width 9,5 mm, partial extension, separable, up to 56 kg at 100.000 cycles

Description:

• Partial extension
• Load capacity up to 56 kg per pair
• End stop closed
• Force-locking latch open
• Separable inner rail

Material:

• Rails made of galvanized and blue passivated steel
• Ball cages made of galvanized steel
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10°C to 40°C
• Storage and transport temperature -20°C to max. 80°C

Notes: The end stop stops the ball guide in the closed position. The force locking detent fixes the guide with defined force in the open position. The separable inner rail allows the inner rail profile to be released by operating a latch. This allows separate mounting of the inner rail to the movable module. The specified load capacities are maximum values for a vertically mounted pair of telescopic rails with even load distribution when using all provided mounting positions.
