Telescopic slide over-extension 044 | up to 60 kg (132.28 lbs)
- Cross section 19 x 35,2 mm
- Length 305 – 660 mm (12.00 – 25.98 inch)
- with locking device
- and end stop
$27.94 – $42.82

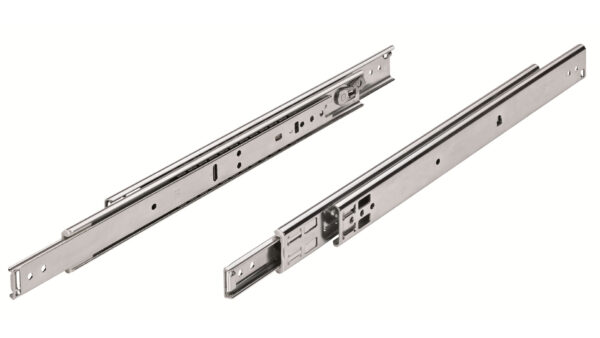

Telescopic slides Schock Metal over-extension series 044
Article price and sale per piece
Article No. Schock 044.10390Z – 044.10399Z
Telescopic slides series 044, hot-dip galvanized steel, width 19 mm, over-extension, separable, up to 52 kg at 100.000 cycles
Description telescopic slide SM-044Z
- Full extension with over-extension
- Load capacity up to 52 kg per pair
- End stop closed
- Force-locking latch open
- Separable inner rail
Material:
- Rails made of galvanized and blue passivated steel
- Ball cages made of galvanized steel
- Balls made of hardened carbon steel
Temperature range:
- Operating temperature 10°C to 40°C
- Storage and transport temperature -20°C to max. 80°C
Notes: The end stop stops the ball guideway in closed position. The force locking detent fixes the guideway with defined force in open position. The separable inner rail allows the inner rail profile to be released by operating a latch. This allows the inner rail to be mounted separately on the movable module. The specified load-bearing forces are maximum values for a vertically mounted pair of telescopic rails with uniform load distribution when using all the fastening positions provided.
- Cross section 19 x 35,2 mm
- Length 305 – 660 mm (12.00 – 25.98 inch)
- with locking device
- and end stop
Telescopic slide over-extension 044 | up to 60 kg (132.28 lbs)
