Full-extension pantry unit L= 450 mm (17.72 in), for medicine cabinet with wooden cabinet

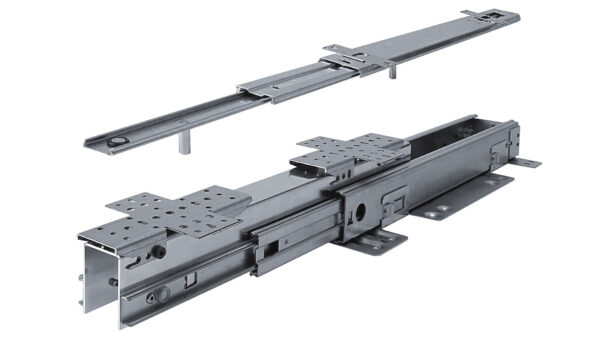

Tall cabinet pull-out 059 series, steel, width 160 mm (6.3 in), length 450 mm (17.72 in), full extension, up to 120 kg (264.56 lbs)

1 piece = 1 setHigh cabinet pull-outSM-059B

• Full-extension slide
• Load capacity up to 120 kg (264.56 lbs)
• Bottom and top guided
• Mounting bracket with front adjustment
• Damped self-closing mechanism 50 mm (1.97 in) in lower and upper guide
• Set packaging – assembled ready for installation including assembly instructions

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of galvanized steel
• Balls made of hardened carbon steel

Temperature range:

• Operating temperature 10°C to 40°C (50°F to 104°F)
• Storage and transport temperature -20°C to max. 60°C (-4°F to 140°F)

Notes: The 50 mm (1.97 in) long retraction dampers with integrated air-vacuum dampers automatically pull the slide into the closed end position and ensure an automatic, low-noise closing process. They stop smoothly and quietly when retracted. The specified load capacity is the maximum value for the lower telescopic slides under uniform load (surface load). The upper telescopic rail provides lateral stabilization of the on-site pull-out element.
